Photovoltaic DC Cable PV10

Table of Contents

Product Overview

The PV10 DC Solar Cable is engineered specifically for photovoltaic power systems. It is used to transmit DC electricity safely and efficiently within solar installations, including rooftop systems, ground-mounted solar farms, and distributed PV projects.

With cross-linked polyethylene (XLPE) insulation and sheath, the cable provides excellent resistance to sunlight, aging, and environmental stress, ensuring stable operation in both high and low temperature conditions.

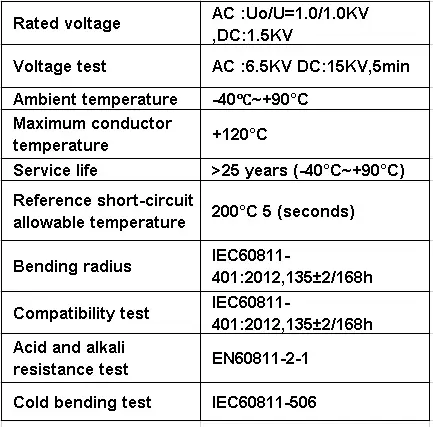

Key Technical Characteristics

• Cable Type: Photovoltaic DC Cable

• Model: PV10

• Rated DC Voltage:

  • PV10: DC 1000V

  • PV15: DC 1500V

• Insulation & Jacket Material: XLPE

• Application: Solar photovoltaic systems

• Operating Environment: Outdoor and indoor installations

Available Conductor Sizes

The PV10 solar cable is available in multiple cross-sectional areas to meet different system power requirements:

• 1.5 mm²

• 2.5 mm²

• 4 mm²

• 6 mm²

• 10 mm²

• 16 mm²

• 25 mm²

• 35 mm²

Product Advantages

• Excellent resistance to UV radiation and sunlight exposure

• Stable performance in high and low temperature environments

• XLPE insulation for enhanced electrical safety

• Suitable for long-term outdoor photovoltaic installations

• Flexible design for easy routing and installation

FAQ

What makes PV10 cable suitable for solar applications?

Its XLPE insulation and jacket provide resistance to UV radiation, heat, and aging, which are critical for photovoltaic systems.

Can this cable be used in extreme temperature environments?

Yes, it is designed to operate reliably in both high and low temperature conditions.

What is the difference between PV10 and PV15?

The main difference is the rated DC voltage: PV10 supports up to 1000V DC, while PV15 supports up to 1500V DC systems.
