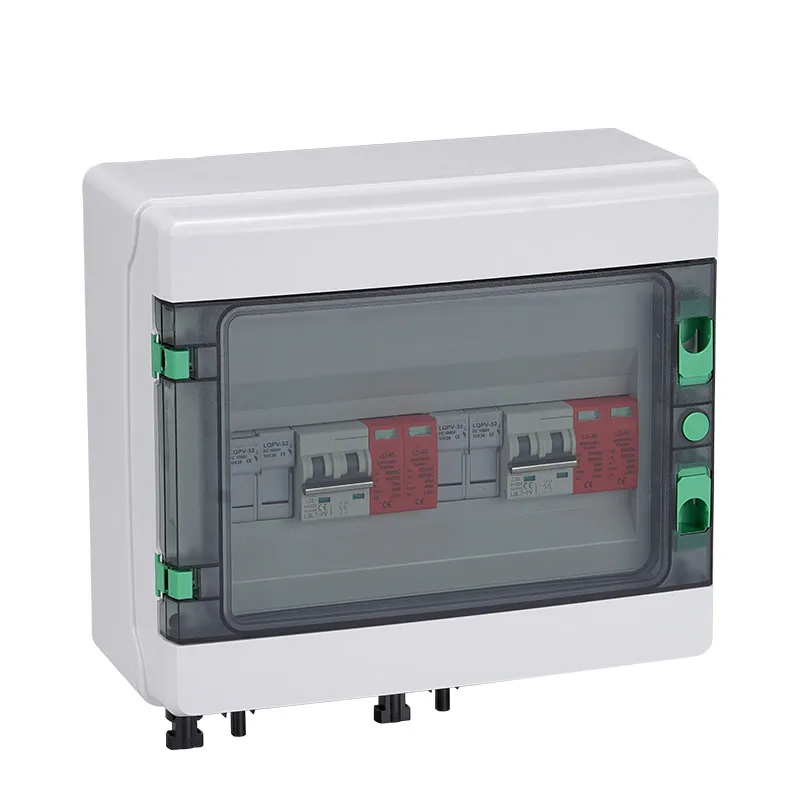

PV Combiner Box 2 In 2 Out DC 500V 32A IP65
The pv combiner box 2 in 2 out is designed to provide independent DC protection and power routing for two photovoltaic strings with separate outputs. Engineered as a robust 500V, 32A, IP65-rated enclosure made from ABS+PC, it provides integrated DC protection and up to 40kA maximum discharge current, making it highly suitable for outdoor solar installations that require strict string-level control and protection before connection to downstream equipment or inverters.
Technical Specifications & Description
Table of Contents
Product Overview

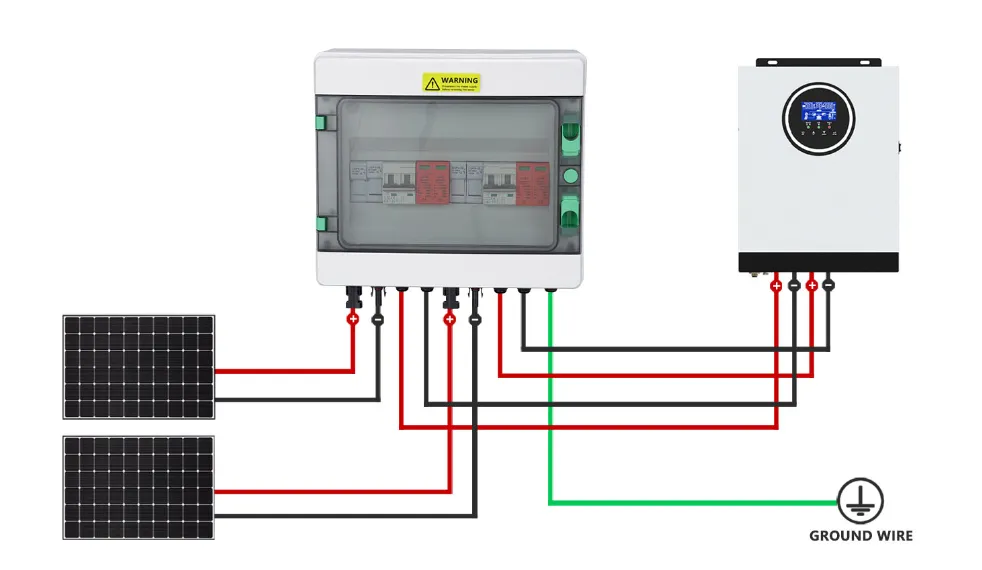

This advanced plastic pv combiner box 2 in 2 out allows two photovoltaic strings to be handled individually, each with its own dedicated output. This configuration significantly improves system flexibility and is commonly used in high-efficiency photovoltaic systems where strings are connected to separate inverter inputs or distinct DC loads.
Manufactured with a durable ABS + PC plastic enclosure, the combiner box offers exceptional weather resistance and electrical safety for outdoor solar applications. Integrated lightning protection enhances system reliability and keeps your equipment safe under severe surge conditions.

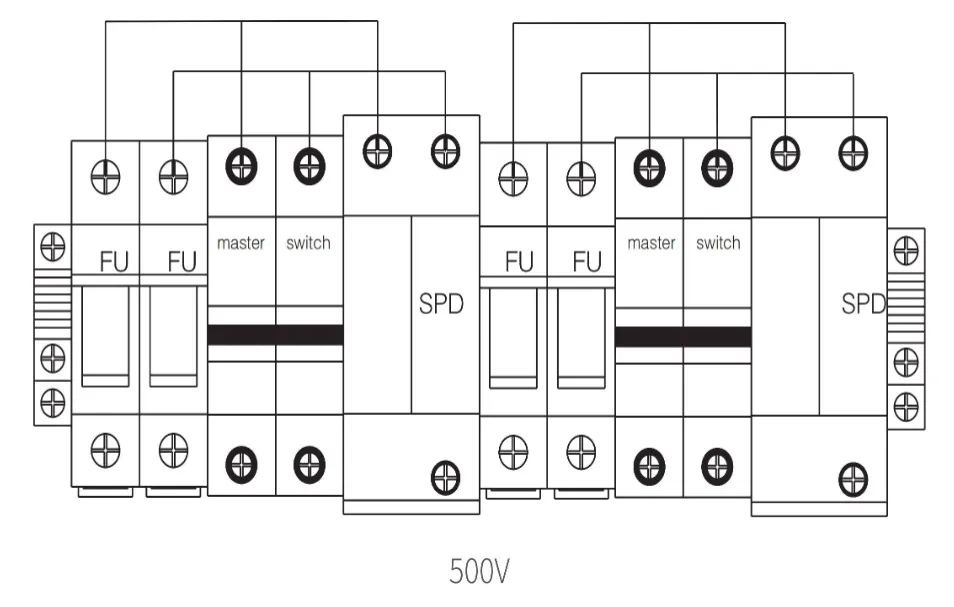

Technical Specifications
PV Combiner Box 2 In 2 Out Functional Advantages
- Independent protection for two separate PV strings.
- Individual outputs for flexible inverter or load connection.
- Integrated DC surge and lightning protection (40kA).
- IP65-rated enclosure specifically designed for harsh outdoor use.
- Compact plastic housing with excellent corrosion resistance.
FAQ
What is the main advantage of a 2 In 2 Out combiner box?
It allows two PV strings to remain electrically independent while still providing centralized, robust protection for the system.
Is this combiner box suitable for outdoor installation?
Yes, the IP65-rated ABS+PC enclosure is completely weather-resistant and designed specifically for outdoor environments.
Does each output have surge protection?
Yes, the box includes integrated surge and lightning protection for both outputs to ensure maximum system safety.
