Product Overview

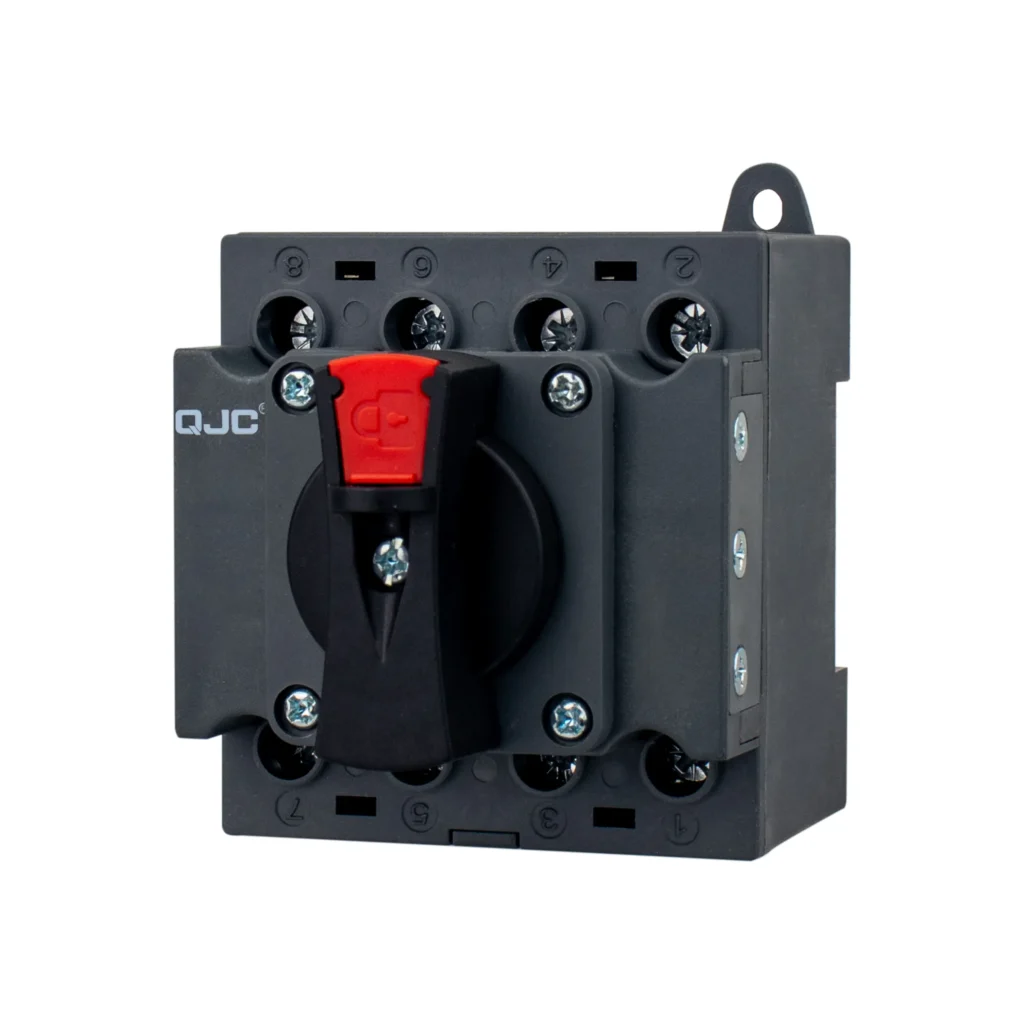

The Photovoltaic Isolator Switch is a dedicated DC disconnect switch designed for safe isolation of photovoltaic power circuits. It is suitable for DC systems up to 1200V with rated current up to 32A, allowing secure disconnection of one or two MPPT lines simultaneously.
This isolator switch is primarily used in solar PV control cabinets, distribution boxes, and combiner boxes, ensuring reliable isolation during maintenance, inspection, or emergency shutdown of DC circuits. The IP66 waterproof enclosure makes it suitable for outdoor and harsh environmental conditions commonly found in photovoltaic installations.
Key Features
Designed for DC photovoltaic power systems up to 1200V
Supports 1–2 MPPT line disconnection in a single operation
No polarity design, eliminating installation errors
High impulse withstand capability (8kA) for improved surge resistance
Wide operating temperature range for outdoor solar environments
IP66 enclosure, resistant to dust, water, and environmental exposure
Suitable for vertical or horizontal mounting, offering installation flexibility
Intended for infrequent switching and safe circuit isolation

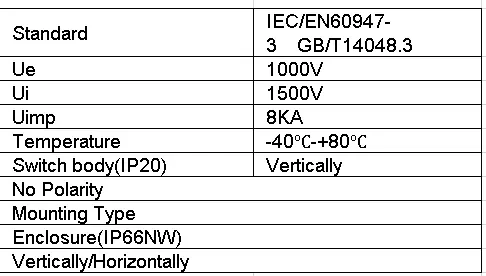

Technical Specifications
Standards & Compliance
IEC / EN 60947-3
GB / T 14048.3
Compliance with international standards ensures compatibility with global photovoltaic system requirements, particularly in East Asia and North Africa markets.
Installation & Usage Notes
Designed for DC circuits only
Intended for manual and infrequent switching
Ensure isolation before maintenance or system inspection
Can be installed in both indoor and outdoor PV enclosures
Suitable for high-temperature and harsh weather environments
FAQ
Yes. The switch features an IP66-rated enclosure, providing excellent protection against dust, water, and harsh outdoor conditions commonly found in solar PV systems.
Yes. It is designed to disconnect one or two MPPT lines simultaneously, improving safety and simplifying system isolation.
Â
No. The no-polarity design allows flexible wiring and reduces the risk of incorrect installation.
