Product Overview
Photovoltaic systems operate under high DC voltage and continuous current, making dedicated DC protection essential.

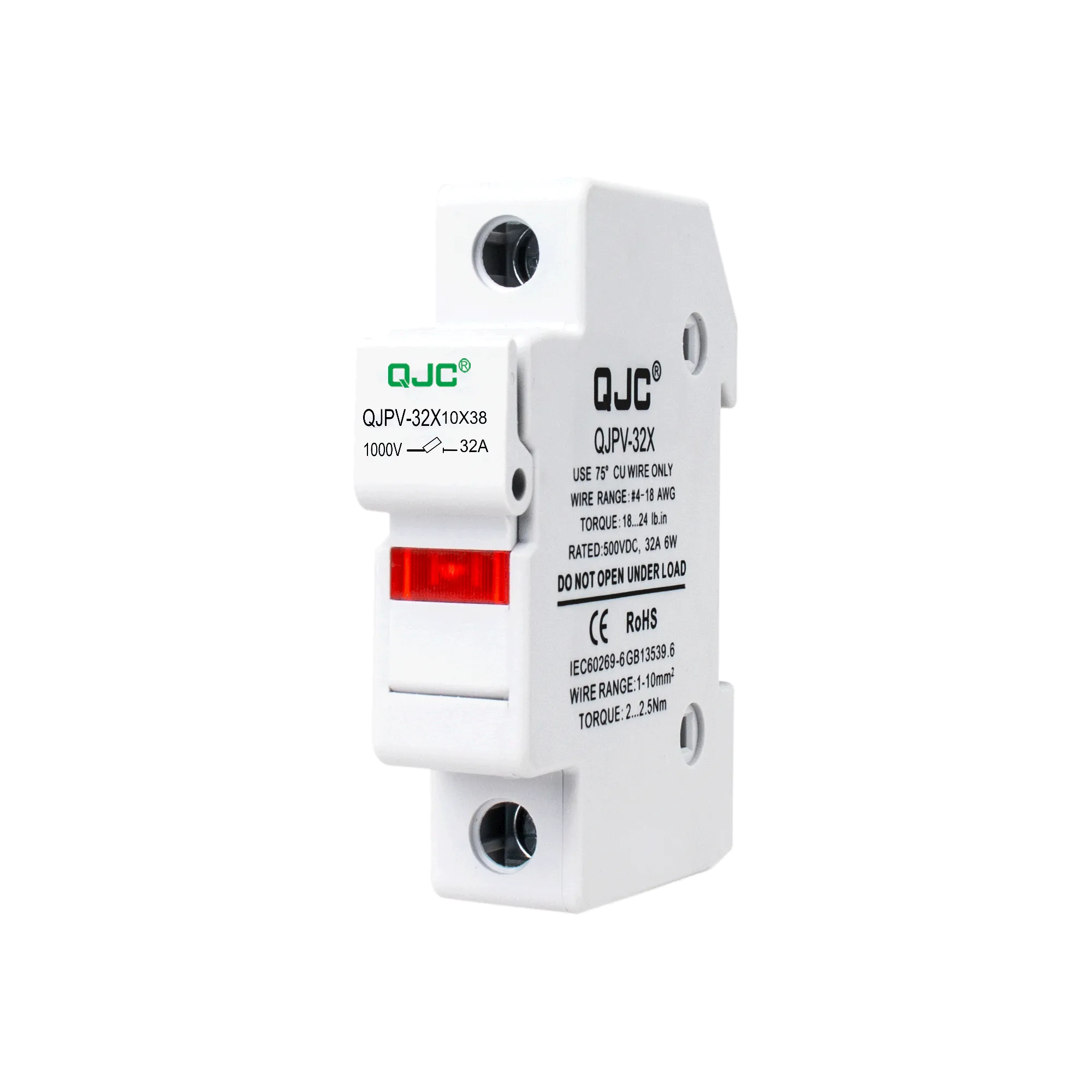

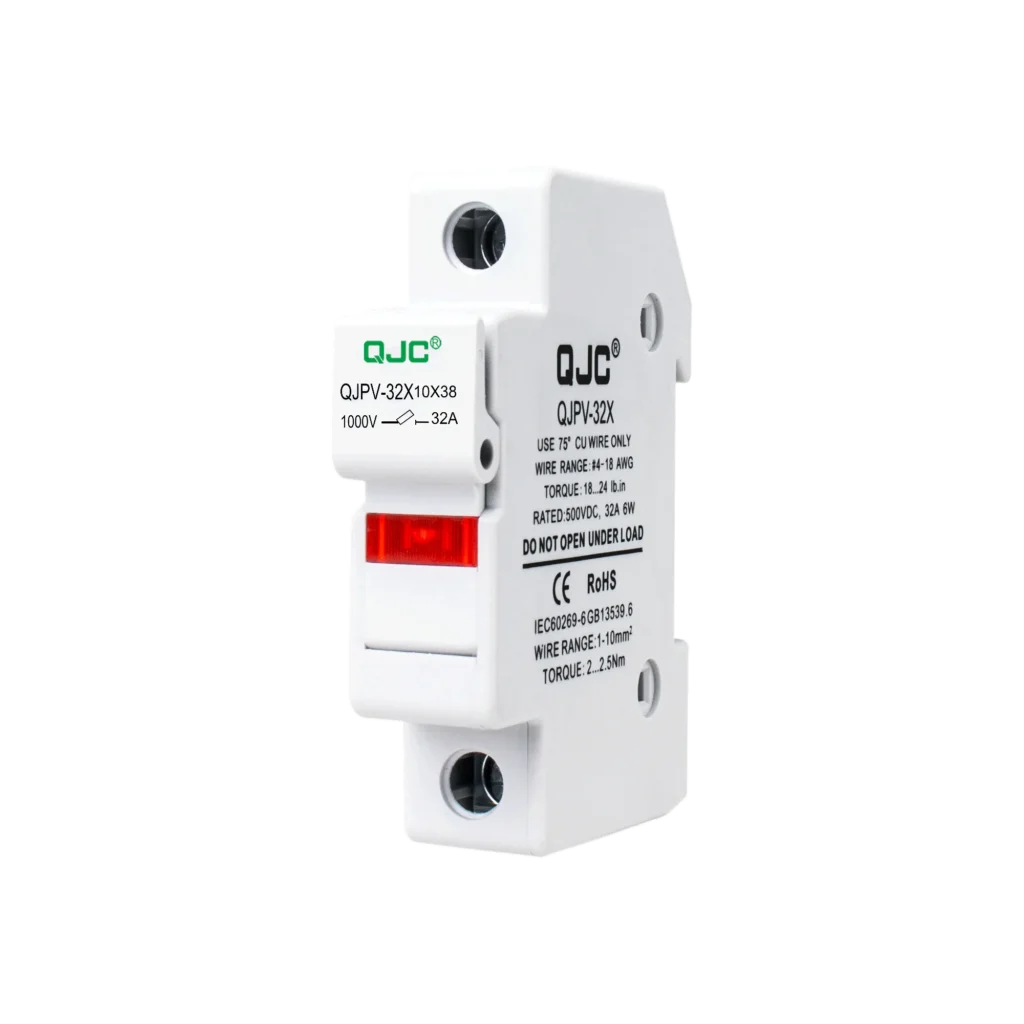

The QJPV-32X Solar PV Fuse is engineered according to IEC60269.6 standards to protect PV strings, combiner boxes, and DC distribution circuits.
Featuring a plug-in design, this fuse allows quick replacement of the fusible core, minimizing downtime during maintenance. The indicator window provides a clear visual signal of fuse status, helping technicians quickly identify blown fuses.

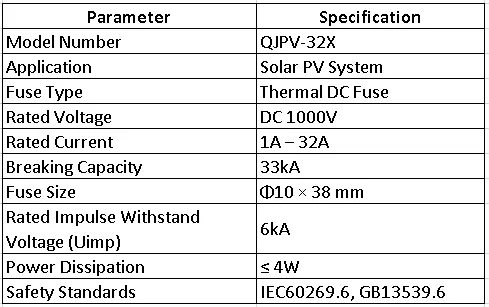

Technical Specifications
Protection Features
Overload protection for PV string circuits
High short-circuit breaking capacity up to 33kA
Stable performance under continuous DC operation
Designed specifically for photovoltaic applications
Structural & Design Advantages
Plug-in fuse design for fast and easy replacement
Indicator window shows fuse status clearly
Light ON → Fuse blown
Light OFF → Fuse normal
Busbar-compatible design for neat, reliable wiring
Compact size suitable for combiner boxes and DC panels
FAQ
AC fuses are not designed to interrupt continuous DC arcs. This PV fuse is specifically engineered for high-voltage DC applications, ensuring safe disconnection under fault conditions.
It means the fuse can safely interrupt short-circuit currents up to 33,000 amperes, providing high-level protection for solar installations.
The fuse features a visual indicator window. When the indicator light is ON, the fusible core has blown and needs replacement.
