Product Overview

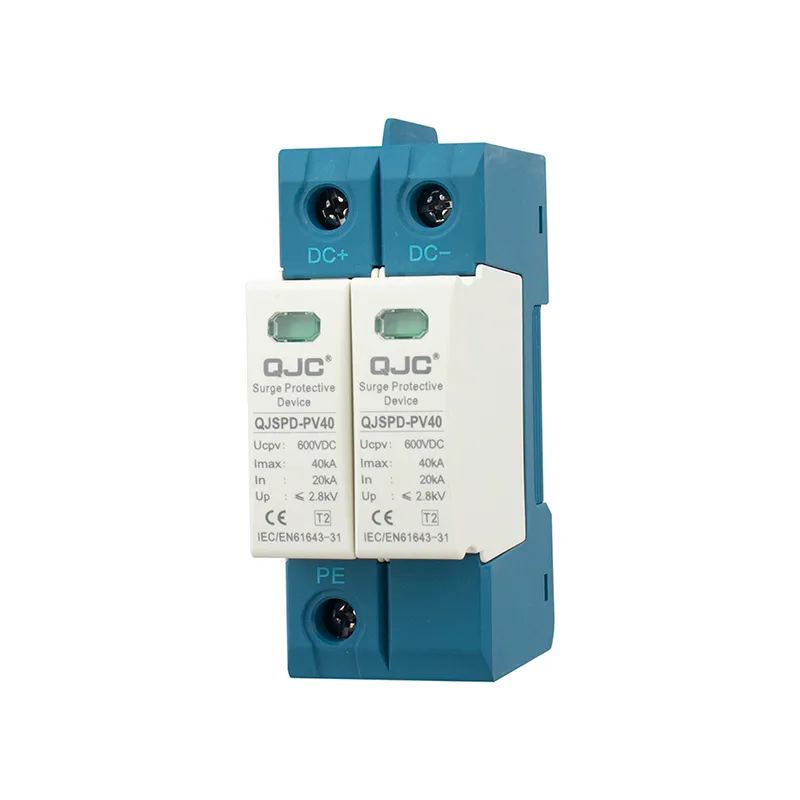

This high-quality 600v dc surge protector is an automatically operated protective switch used in low-voltage distribution systems. Acting as a highly efficient dc surge protective device, it combines a compact design with stable tripping performance, making it suitable for everyday power distribution and protection tasks.
In addition to circuit protection, the device can also be used for infrequent manual switching operations under normal operating conditions to maintain system stability.
600v dc surge protector Features & Benefits
- 40kA high surge discharge capacity for photovoltaic DC circuits.
- 600V DC rated voltage, suitable for common PV system designs.
- Advanced self-developed MOV technology for stable and long service life.
- Thermal disconnect device for each individual protection module.
- Optical and mechanical status indicators for fast visual inspection.
- Optional floating remote indication contact for system monitoring.
- Consistent pluggable design, including N/PE spark gap compatibility.
- Compatible with most PV network configurations.
- 35mm DIN rail mountable for quick installation in PV enclosures.

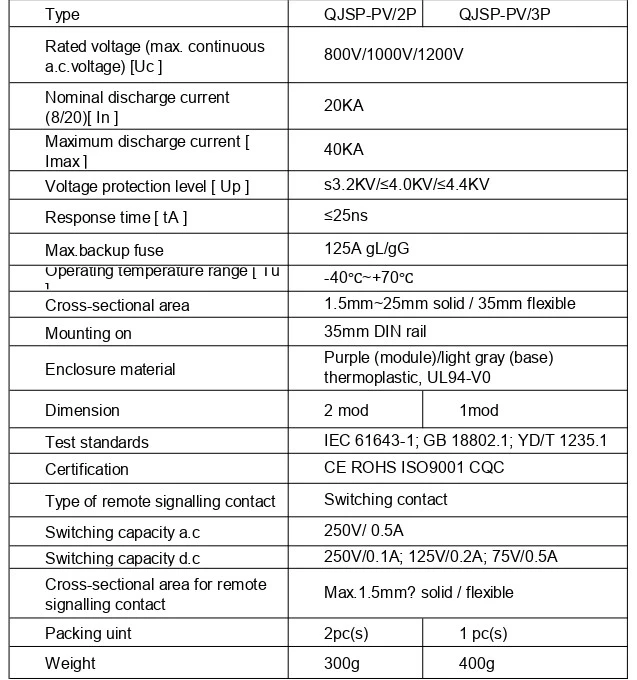

Technical Specifications
Typical Applications
- Solar PV combiner boxes.
- Photovoltaic DC distribution panels.
- Solar inverter DC input protection.
- Rooftop and ground-mounted PV power plants
- Residential, commercial, and industrial solar systems
FAQ
It protects photovoltaic DC systems from lightning surges and transient overvoltages, featuring a 40kA high surge discharge capacity and advanced self-developed MOV technology.
The device is equipped with optical and mechanical status indicators for fast visual inspection. If the indicator signals a fault, the specific module has safely disconnected and needs replacement.
Yes, it features an optional floating remote indication contact specifically designed for remote system monitoring.
